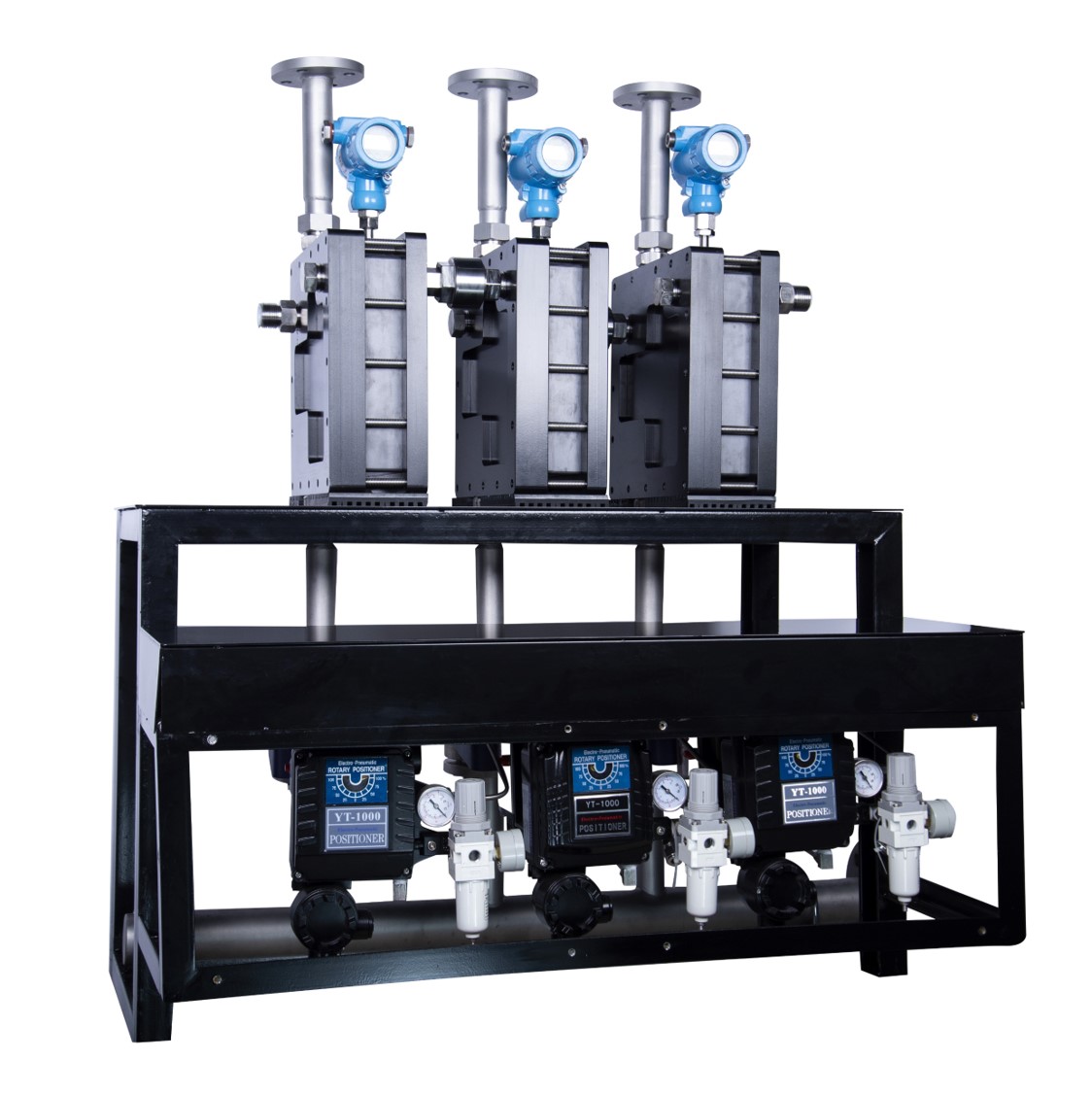

Model: ZSMR-5000S (10000S)
Total volume: 3L/unit, reference
price 200 million yuan/ unit
Flow: 5~10L/min (8~15kg/min)
Temperature: The first temperature
zone is -10°C, the second temperature zone is -10°C, and the third temperature
zone is -10°C
Applicable type: general
heterogeneous, liquid-liquid reaction, solid-containing reaction
Flow channel pressure: >4MPa,
actual operation <2.0MPa
Chanel pressure: >0.6MPa, actual
operation <0.4MPa
Material specific gravity: 0.6-2.0g/mL
Material: SSiC
Special pump: ZSMR-10000 (C),
instantaneous flow deviation 0.3%
One-key DCS automatic control,
supporting ZSMR digital visualization link, monitoring viscosity, flow,
temperature, pressure and ratio.
